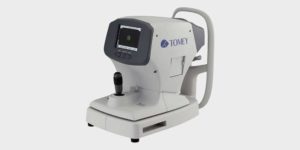

Tomey RC-800 Auto Refkeratometer Highly accurate measurements together with the very brief examination time and easy handling make working with all the TOMEY RC-800 professional and fast.
The automobile Refkeratometer RC-800 is the latest in economical, user-friendly, exceptionally precise automobile refkeratometry.The RC-800 offers simple, easy measurement by the operator for an economical cost, without compromising accuracy or reliability.Functions incorporate USB connectability, a high-speed printer, auto shooter, color touch screen and access to ten distinct languages (English, Japanese, German, Chinese, Spanish, Spanish Latin America, Italian, Portuguese, French and Russian). Additionally, the RC-800 dust-resistance capability boosts performance, and simpler maintenance eased by the simplified design makes the RC-800 an invaluable device for all users. Encapsulated in an elegant and stylish design, the RC-800 integrates all required functions for highly precise, easy-to-use, economical auto refkeratometry.
Tomey RC-800 provides simple, easy measurement from the operator for an economical cost, without compromising reliability or accuracy. Functions include USB connectability, a high-speed printer, auto shooter, color touch screen and access to ten Distinct languages
Features:
- Highly Accurate
- Simple to Use
- Diameter Measurement of Cornea and Pupil
- High Speed Printer
- Auto Shot
- Color Touch Screen
- USB connection
- Large Patient Database
- Easy Database Operation
- Multi-Language Operation
- Fourier Refractive Analysis
- Quick Data Reference
- Built-in LCD Alignment
- Keratoconus Screening & Other Applications
Measurement Ranges:
Refraction:
- Sphere: -25.00D to +22.00D (VD=12.0mm)
- Cylinder: 0D to ±10.00D (VD=12.0mm)
- Axis: 0° to 180°
- Minimum Pupil Dia: ø2.0mm
- Measurement time: 0.2 second/single eye (data taking time)·
Keratometry:
- Range: 5.00mm to 11.00mm
- Corneal Refraction: 30.68D to 67.50D (n=1.3375)
- Corneal Astigmatism: 0D to 10D (n=1.3375)
- Axis: 0° to 180°
- Measurement area: ø3mm (at 8.00mm corneal curvature)
- Measurement time: 0.1 second/single eye (data taking time)
Other features:
- PD Measurement range 50 to 86mm
- Corneal diameter measurement
- Measurement range: 10.0 to 14.0mm
- Display unit: 0.1mm
- Pupil diameter measurement
- Measurement range: 1.0 to 10.0 mm
- Display unit: 0.1mm
- Built-in Printer Thermal printer
- Data output type RS232C / USB-D
- Display 5.7 inch color liquid crystal display
- Dimensions and weight 297(W)x 500(D) x 448(H)mm
- Approx. 17kg
- Power Requirements AC 100V to 240V, 50 / 60 Hz, 80VA to 100V
