Tomey RC-5000

Sale!

$7,050.00 $5,050.00

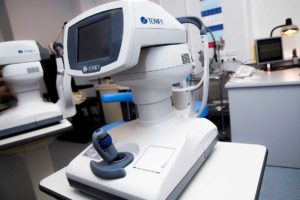

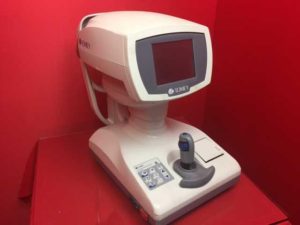

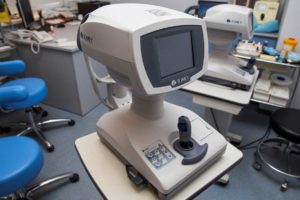

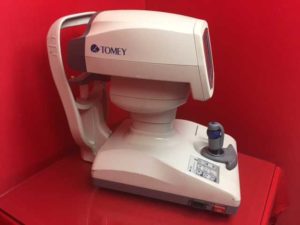

Tomey RC-5000 AutoRefractor Keratometer sets the standard of contemporary eye diagnostic devices to the latest electronic technology inventions. Together with the new attributes, the RC-5000 will certainly make your workplace more efficient.

In stock

SKU: RC-5000 Category:

Tomey RC-5000 AutoRefractor Keratometer is both specialist and fast Highly precise measurement combined with short evaluation time and simplicity

The advanced touch-screen screen allows you to perform both refraction and keratometry mechanically with one easy movement. Capture one eye on the screen, and the RC-5000 will do both eyes automatically.

Together with the new attributes, the RC-5000 will certainly make your workplace more efficient. The RC-5000 you can operate and align through both — power movement joystick and/or touch screen this in percent of seconds.

Tomey RC-5000 sets the standard of contemporary eye diagnostic apparatus to the latest electronic technology innovations. Thanks to the controlled motion you can operate and align with the RC-5000 through both — electricity motion joystick and/or touch display — all this in the fraction of seconds.
Highly precise measurements together with the very short examination time and effortless handling make working with all the TOMEY RC-5000 professional and fast.

Tomey RC-5000 Refractor-Keratometer with touch display The RC-5000 sets the standard of modern eye analytical. Thanks to the controlled motion you can operate and align the RC5000 through both — electricity motion joystick and/or touch screen — all this at the portion of seconds. Highly precise measurements together with the very brief examination time and effortless handling make working together with the TOMEY RC-5000 professional and quick. Colour Touch Screen: The 5.7-inch color touch screen is used as the operating monitor as well as for displaying all measured

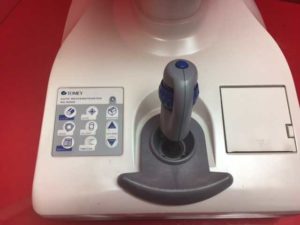

Power Motion Joystick
Five power motion modes ensure a precise and silent movement of the unit in all directions. You have the choice between rough or fine adjustment towards the patient eye.

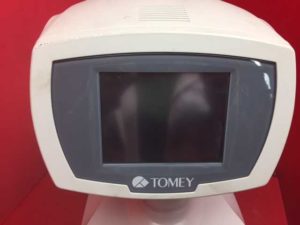

5.7 Inch Color Touch Screen
Used as the operating monitor as well as for displaying all measured values. You can even move the unit in all directions by simply touching the screen. All commands can be done via touchscreen.

Auto Alignment + Auto Shot
Alignment and measurement are done automatically. You just roughly align the system towards the patient eye and the rest is taken care of by the instrument. With a touch of the screen, the system automatically moves to the left or right eye.

Pupil + Cornea øMeasurement
Once you have captured your patient’s eye, you can set the pupil and cornea measurement bars to individual diameters. These values will also be stored, displayed and printed.

Extremely Fast Operation
Acquires the data even in combined mode (refraction and keratometry) in less than three seconds. This short examination time makes the unit cost and time effective as possible.

Central + Peripheral K-Values
The RC-5000 provides you the central (ø3 mm) and peripheral (ø6mm) keratometer readings measured at one time within a second. You can take these readings from a cornea or the back surfaces of an RGP contact lens.

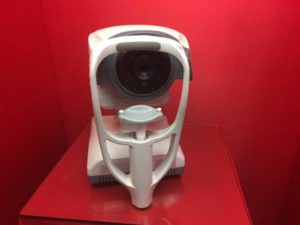

Electronic Controlled Chinrest
Adjusts up or down by just pressing a button. For mounting on a refraction unit you can easily disassemble the chinrest from the main body.

Highlights
  • Highly Accurate
  • Simple to Use
  • Touch Screen Display
  • Fully Automatic Alignment and Auto Focus
  • Diameter Measurement of Cornea and Pupil
  • Power Joystick and Chin Rest
  • High-Speed Printer
  • List of Recommended Contact Lenses

RC5000-AutoRefractor-Keratometer

5/5 (2 Reviews)
Features

Refractometory :

-Sphere 25.00 to +22.00D (VD =12.00mm) Cylinder -10.00 to +10.00D (VD = 12.00mm)
-Axis 0 to 180 Degree
-Minimum Pupil Dia. 2.2mm
-Measurements Time 0.2 Sec.

Keratometry :

-Range 5.00mm to 11.00mm
-Corneal Refraction 30.68D to 67.50D (n = 1.3375)
-Corneal Astigmatism 0D to 10D (n = 1.3375)
-Axis 0 to 180 Degree
-Measured Area 3.0mm / 6.0 mm
-Measured Time 0.1 Sec PD
-Measurement Yes (50 to 86mm)
-Diameter Measurement of Cornea & Pupil 1.0 to 14.0mm
-Chinrest: Power Chin Rest
-Printer: High-Speed Thermal Line Printer

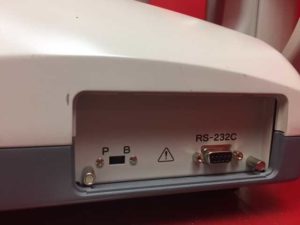

-OutputPort RS-232C
-Power Requirements: AC 100V to 240V
-50/60Hz 130VA
