OcuLight GL, GLx, and TX are solid-state lasers that deliver true continuous-wave green laser (532 nm) light for ophthalmic applications. The OcuLight TX and GLx are also indicated for otolaryngological applications. Improper use of the laser system can result in adverse effects.
The OcuLight GL, GLx, and TX are intended for use in ophthalmic and otolaryngological applications for therapeutic purposes only by trained medical practitioners. IRIDEX does not make recommendations regarding the practice of medicine. References in literature are provided as a guide. Individual treatment should be based on clinical training, clinical observation of laser-tissue interaction, and appropriate clinical endpoints.

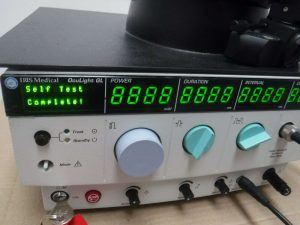

Iridex OcuLight GL
The OcuLight family of green laser photocoagulators includes the OcuLight GL and the OcuLight GLx models. Using the latest in solid-state technology, these lasers emit true continuous-wave (TrueCW™) green light at 532 nm. Patented solid-state technology offers unsurpassed reliability, multiple delivery device options maximize versatility, compact size allows easy transportation between offices, and advanced design minimizes routine laser maintenance.
The OcuLight GL/GLx is indicated for retinal photocoagulation and laser trabeculoplasty. The following are examples of applications for the OcuLight GL/GLx laser systems

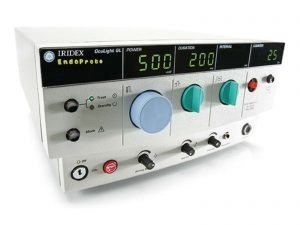

Iridex OcuLight GL High Performance and Value
- The efficiency with a full 1500 mW of deliverable laser power
- Provides pulse durations and pulse intervals from 50 to 1000 milliseconds
- Expands system performance with convenient accessories
– Includes a full line of delivery devices
– Offers a broad selection of EndoProbe® handpieces for a variety of
surgical procedures
– Offers an optional wireless footswitch to reduce clutter and improve
ergonomics and control - Offers excellent ergonomics and true portability
– Quiet operation eliminates distraction during treatment
– Convenient, easily understood controls permit smooth interface with
the laser system and delivery devices
– Transports easily between treatment rooms and offices
Specifications
- Wavelength: 532 nm Green
- Weight: <6.0 kg (13.2 lb)
- Dimensions: 30 cm x 30 cm x 15 cm
(12 in W x 12 in D x 6 in H) - Connector Type: Resistor
- Electrical: 100–240 VAC, 50/60 Hz
- Cooling: Whisper fan with Peltier cooling
- Exposure Duration: CW-Pulse™: 30–1000 ms
- Exposure Interval: CW-Pulse: 30–1000 ms
- Aiming Laser: Diode laser, 635 nm nominal
- Delivery Device SLA: 0–1200 mW
- Power Output: LIO: 0–1500 mW
- EndoProbe®: 0–1500 mW
Soren Milano –
OcuLight GL, GLx, and TX are solid-state lasers that deliver true continuous-wave green laser (532 nm) light for ophthalmic applications.
