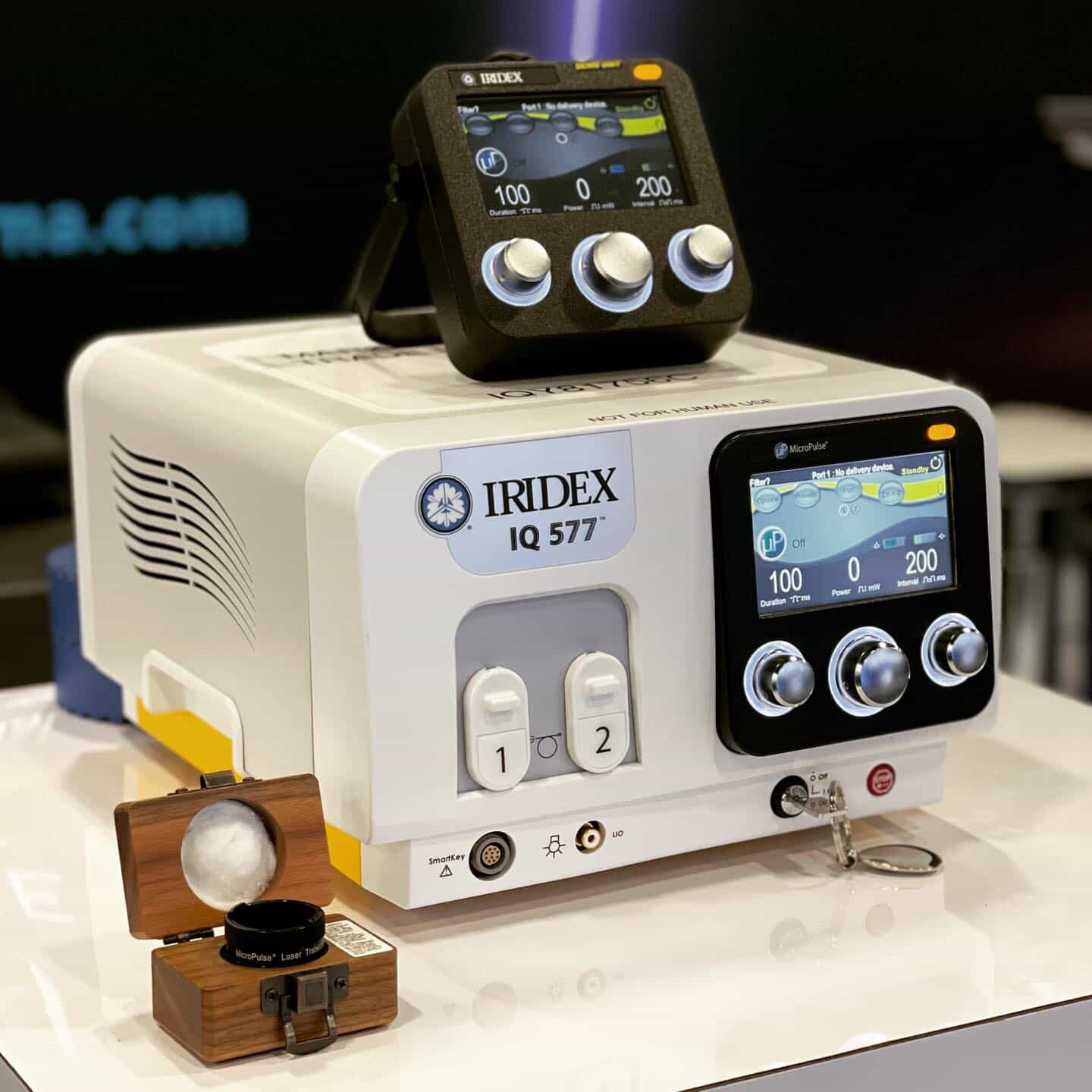

The IQ 577 is a state-of-the-art, 577 nm true yellow retina laser system, in a solid-state platform. This system uses IRIDEX MicroPulse™ technology.
It gives doctors new treatment options for precise control and tissue-saving procedures. These options were previously only available in 810 nm lasers. The IQ 577 offers precision and outstanding performance, complemented by an intelligent design in an intuitive, advanced platform.
The 577 nm laser wavelength was only available to eye doctors. It was used in argon-pumped dye laser systems. These argon-pumped dye laser systems are now outdated. They were once popular but had many downsides. They were large and required a significant amount of electricity. They also required circulating water for cooling. Plus, they were costly to maintain and service.
Theodore A. Boutacoff, President and CEO.
We have leveraged our company’s expertise to develop the IQ 577. This product restores the laser wavelength for doctors. It uses reliable and efficient solid-state laser technology.
The MicroPulse technology in the IQ 577 meets today’s clinical needs and is also well-positioned to meet future needs. The IQ 577 visualization optics are significantly clearer than those of older dye laser systems. This helps the ophthalmic laser surgeon adjust small laser doses. As a result, it better preserves healthy tissue.
IRIDEX IQ 577 Features
True Yellow, 577nm wavelength for precise performance
- High transmission through dense ocular media
- Consistent laser lesions for fast procedure time
- Low power required for increased patient comfort
Intelligent and intuitive design
- Dual Port for efficient setup of alternate delivery devices
- Intuitive graphic touch screen interface for ease of use
- Programmable memory presets for multiple users
Optional Module for MicroPulse Laser Therapy
- Repeatable macular and foveal laser sessions
- Success with refractory and sub-clincal edema
The IQ 577 is a powerful yellow laser system. It has a wavelength of 577 nm. Ophthalmologists use it to treat serious eye diseases. These include diabetic retinopathy, age-related macular degeneration, and glaucoma.
The IQ 577 offers tangible benefits to both patient and physician. Patients benefit from less discomfort. The yellow laser at 577 nm is more readily absorbed by blood.
It scatters less as well. This means less power is needed for treatment. This also lowers patient discomfort compared to 532 nm green laser systems.
Doctors benefit from the easy-to-use interface. They can control it with a wireless foot pedal. This pedal allows for power adjustments. They also receive audible confirmation when they make changes.
What is MicroPulse Technology?
CW-Pulse™ (Continuous-Wave) Mode: CW lasers deliver a steady stream of laser energy, even with the shortest exposure duration. This results in a significant thermal rise and consequent coagulation used clinically for many applications.
MicroPulse Mode: MicroPulse technology carefully controls heat by breaking a continuous-wave (CW) beam into short pulses. This allows tissue to cool between pulses and reduces heat buildup.
The TxCell Offers:
- Multi-spot pattern scanning for efficient retinal photocoagulation
- Standard coagulation with optimized wavelengths: IQ 532™ or true-yellow IQ 577™ lasers
- Confluent laser patterns for tissue-sparing1 MicroPulse™ protocols*
- Compatible with IRIDEX, Haag-Streit and Zeiss style slit lamps
Specifications:
- Yellow Treatment Laser: 577 nm, solid-state laser
- Power: maximum 2000mW, minimum 50mW, minimum adjustment 10mW
- Pulse settings: duration 10-3000ms (up to 60s in Paint Mode) in 10ms increments, interval 10-3000ms in 10ms increments
- MicroPulse®: duration 0.05-1.00ms @ 0.05ms increments, interval 0.1-10ms @ 0.1ms increments
- RFID connector
- Touchscreen
- optional wireless, power-adjust footswitch, remote control
- Weight: 6.4 kg
- Length: 17 mm
- Width: 30 mm
- Height: 32 mm
Include:
- 6 Month Warranty
- TxCell Scanning Laser Delivery System
- Haag-Streit Style Laser Link
- LIO
- Current Service Contract by Iridek
- Power table.
- Fully functional IRIDEX IQ 577.
